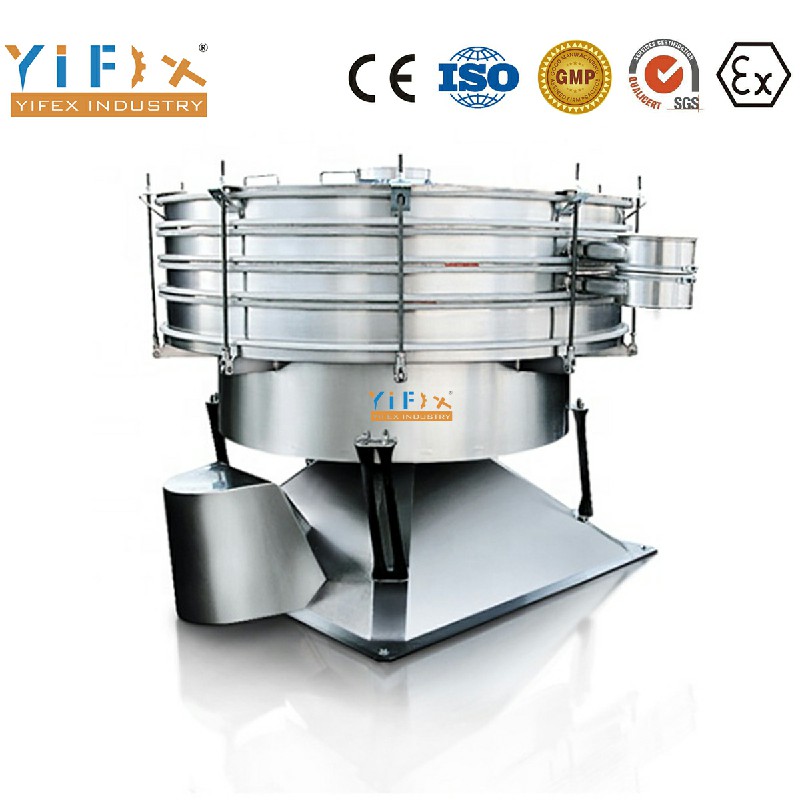

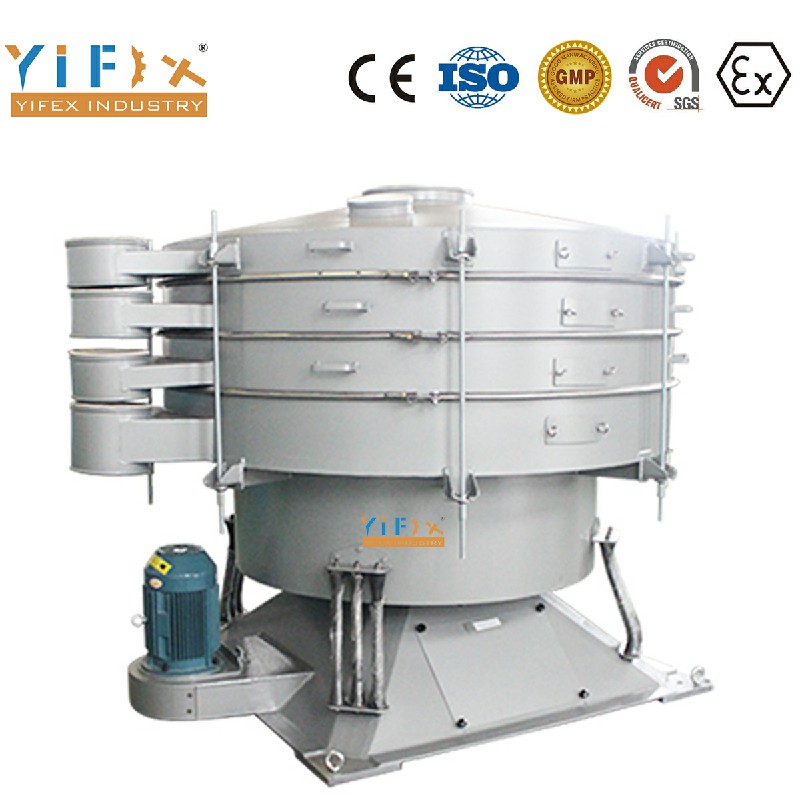

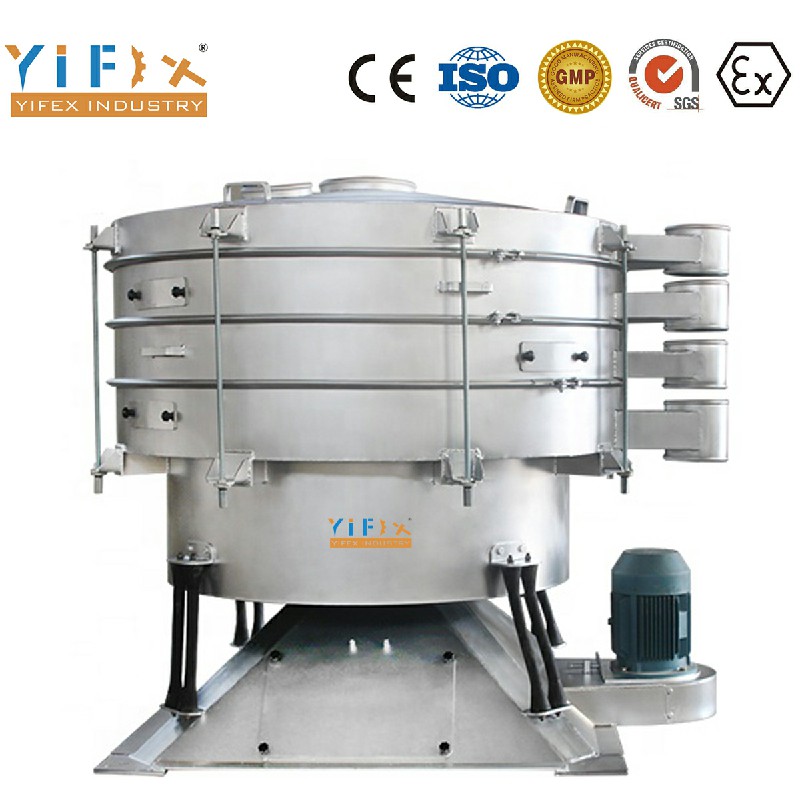

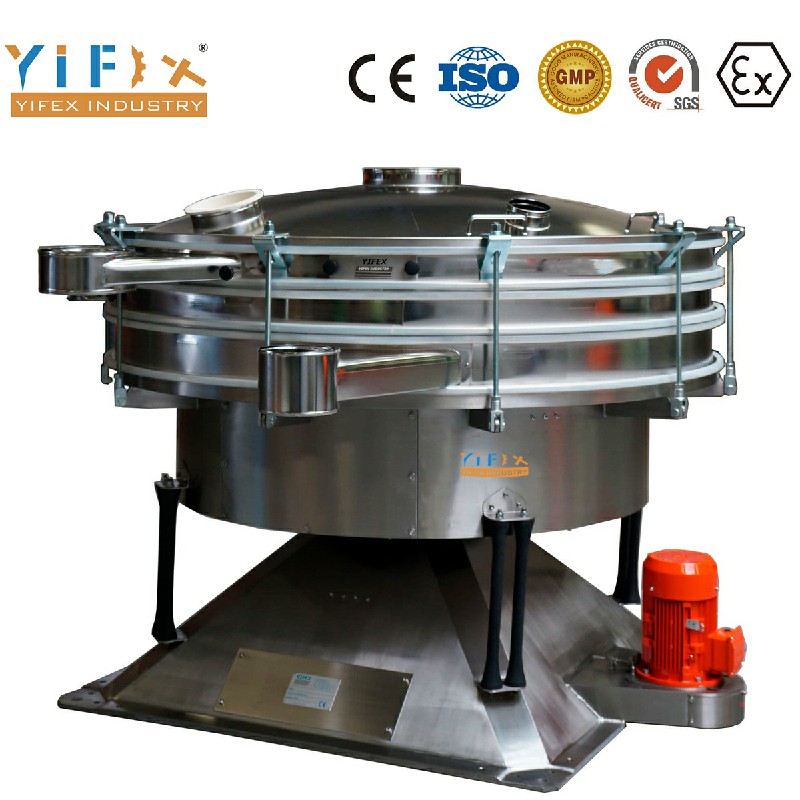

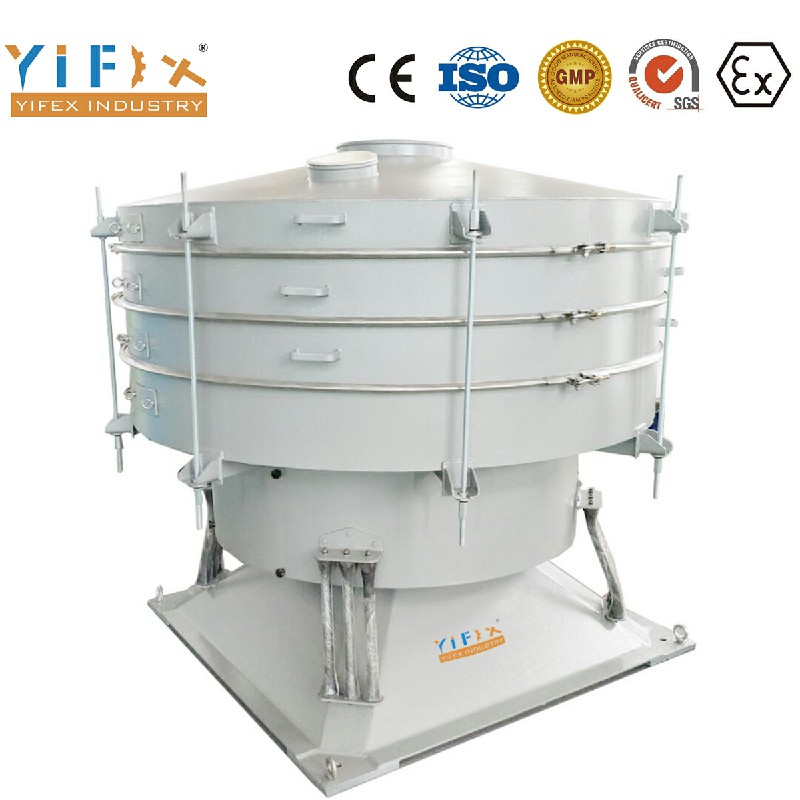

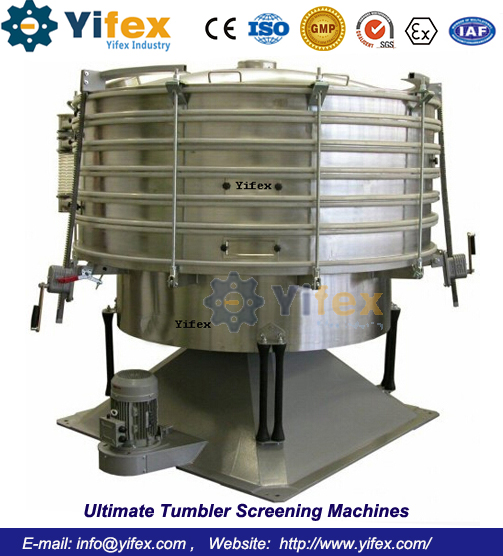

Ultimate Tumbler Screening Machines

Model

UTS

Diameter

1200mm,1600mm, 2000mm, 2200mm, 2400mm, 2600mm

Layer

1~6 decks

Material

Stainless steel 304,316L,or Carbon Steel

Voltage

3 phase, 220V/ 380V/ 415V, 50HZ/60HZ(Customized is available)

Minimum Order Quantity

1 set

Warranty

12 months

Certification
CE,ISO,FDA,GMP

Delivery Time

10-30 days after receiving deposit
Payment Terms

T/T, L/C, Western Union, Paypal











If you choose this product, please tell us the Model, diameter, layers and  your country.

We will help you to calculate the machine price and shipping cost , Our Email is: info@yifex.com

For more details, please get in touch with us right now!


Basically the movement of a Tumbler Screening Machine can be compared to natural hand screening.
For the control screening, fractionating and de-dusting of dry, powdered and granular products.
Particularly suitable for high feed rates and multi-deck separations of fine, lightweight products which are difficult to screen.

Material:

The Ultimate Tumbler Screening Machines machine could be made in all stainless steel 304 or 316, or only the contact part to be stainless steel.

Mesh Size:

Mesh Size could be from 20mm to 18μm, and the material of the mesh wire could be stainless steel or Nonmetallic.

Certification:

CE,ISO,FDA,GMP

Advantages:

Extremely high screening efficiency obtainable by means of individually adjustable retention time for any product and capacity.
Delivered operationally ready and adjusted to each product.
Up to 5 fractions simultaneously on each machine.
Low acceleration, long service life of all parts, no product destruction.
Up to 100% availability in 24h operation with few maintenance requirements.
Tough modular design, no dead corners, low part weights.
Heavy pyramid base to counterbalance the rotating body.
100% statically and dynamically balanced for vibration free installation in steel structures.
Automatic centering of screening inserts and strong intermediate rings and covers for simple and fast assembly and screen changing.
Low construction height by means of reduced intermediate ring heights of 80 mm for best screen results on all decks.
100% dustproof thanks to simple fast-mounting Silicone clip-on gaskets on the intermediate rings, thereby dispensing with the requirement to exchange the formerly used U-shaped gaskets on the screen inserts.
Easy dismantling and cleaning of all parts down to the conical base.
Low noise level of approx. 75 db(A)
Optional: quick clamps for maximum time saving when changing screens.

ultimate-tumbler-screening-machines


ultimate-tumbler-screening-machines

ultimate-tumbler-screening-machines ultimate-tumbler-screening-machines

ultimate-tumbler-screening-machines ultimate-tumbler-screening-machines

ultimate-tumbler-screening-machines


As different country ,the shipping cost is not same, so,after you chosen the products,
please tell us the model,quantity and your country .
We will help you calculate the machine price and shipping cost ,Our Email: info@yifex.com

About US:

1.We are Chinese professional screening machines supplier with 20 years of production experience. products such as:vibraing screen, feeders, conveyors, motors etc.

2.All of our products can be SS304, SS316 and carbon steel, or nonmetal, pls let us know your request.

3.Customised designs and sizes available

4.Comply with Europe and America standard

5.OEM, ODM and OBM orders available.

Products details:

1) Various designs and colors are available

2) Good quality and competitives prices

3) Packing: 1set/ wooden case or according to customer designs

4) Production Time: 10-30days

Price terms:

We can offer EXW price, FOB price, CIF price  as client's requests.

Payment terms:

1.T/T 30% deposit before production and balance before delivery or against by B/L if sea shipment

2.L/C at sight if sea shipment.

Shipping way:

1.By air or sea through your pointed forwarder is OK for us. FOB Port is Shanghai.

2.If you don't have your forwarder,we can find the cheapest forwarder to ship the goods to your pointed port.

3.We can provide the customs documentations of the shipment as you required to you.









After your confirmation, Our sales manager will contact you asap, Thank you for your support.
