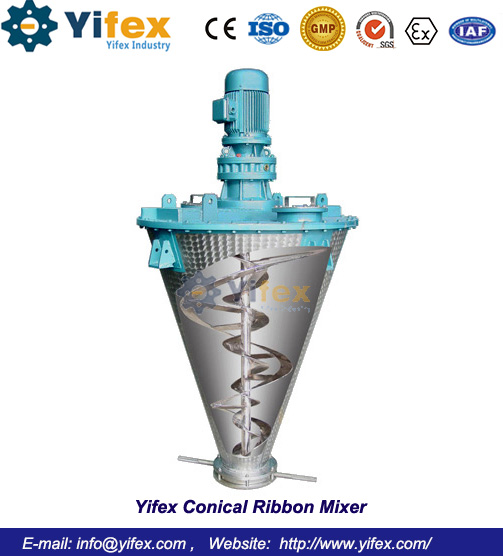

Yifex Conical Ribbon Mixer
Model	LDSH
Material	Stainless Steel 304 or 316，or Carbon Steel
Voltage	3 phase, 220V/ 380V/ 415V, 50HZ/60HZ(Customized is available)
Minimum Order Quantity	1 set
Warranty	12 months
Certification	CE,ISO,FDA,GMP
Delivery Time	10-30 days after receiving deposit
Payment Terms	T/T, L/C, Western Union, Paypal

If you choose this product, please tell us the Model and  your country. We will help you to calculate the machine price and shipping cost , Our Email is: info@yifex.com

For more details, please get in touch with us right now!

Introduction:

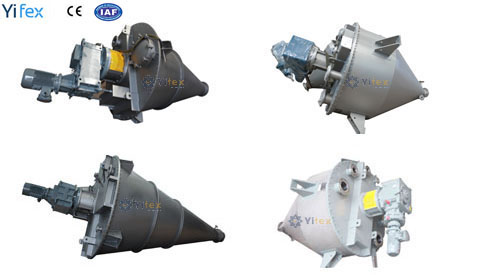

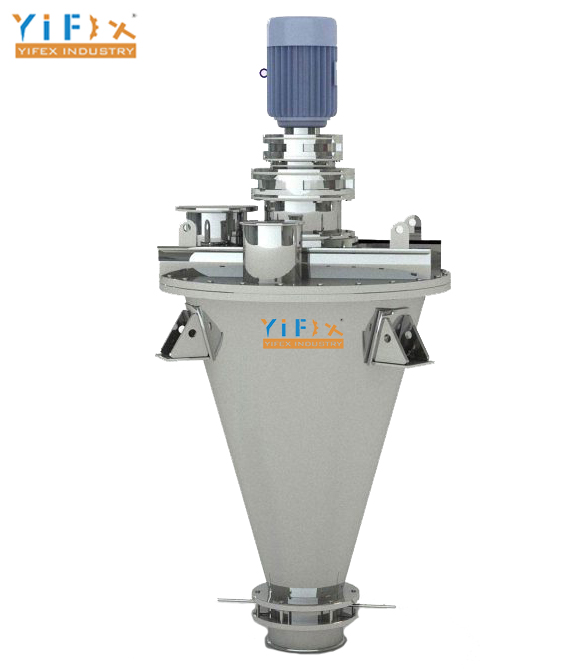

Conical Ribbon Mixer consists of a transmission device, taper cylinder, outer ribbon mixer, inner reverse screw mixer and discharge valve. It is a new design for viscosity material. The material circles and rises under the operation of the outer ribbon mixer, while the inner reverse screw presses down the material along the shaft, which finishes the mixing. With a long force arm and weak impact force,this equipment is suitable for the mixing and reaction of highly adhesive liquids with viscidity under 200, 000cp, such as paint, coating material and adhesive. It is particularly useful for the mixing of non-Newton fluids containing a lot of solid elements.

Standard Features:
Volume: 100-15000L
Stainless Steel or Carbon Steel
Ribbon & Screw agitator for bottom discharge
Designed for normal temperature and normal atmospheric pressure
Feed Nozzle
Dust Nozzle
Manually operated or Pneumatic operated dislocated valve
Packing Seal
Safety limit switch on man hole

Optional Features:

Carbon Steel, Stainless Steel 304, Stainless Steel 316L
Internal pressure
Sanitary type construction
Dislocated valve, butterfly valve, slide gate valve, ball valve
Horsepower to suit higher density materials
Explosion-proof motors
Controls such as variable frequency drives, motor starters and operator stations are available
Spray nozzles for liquid introduction
Jacket for heating or cooling

Technical Data:

Model	Total Volume	Effective Volume	Power
LDSH-0.1	100L	40-60L	2.2KW
LDSH-0.3	300L	120-180L	3KW
LDSH-0.5	500L	200L-300L	4KW
LDSH-1	1000L	400L-600L	7.5KW
LDSH-1.5	1500L	600L-900L	11KW
LDSH-2	2000L	800L-1200L	11KW
LDSH-3	3000L	1200L-1800L	15KW
LDSH-4	4000L	1600L-2400L	18.5KW
LDSH-5	5000L	2000L-3000L	22KW
LDSH-6	6000L	2400L-3600L	30KW
LDSH-8	8000L	3200L-4800L	37KW
LDSH-10	10000L	4000L-6000L	45KW
LDSH-12	12000L	4800L-7200L	45KW
LDSH-15	15000L	6000L-9000L	55KW

Certification:

CE,ISO,FDA,GMP

As different country ,the shipping cost is not same, so,after you chosen the products,
please tell us the model,quantity and your country .
We will help you calculate the machine price and shipping cost ,Our Email: info@yifex.com
