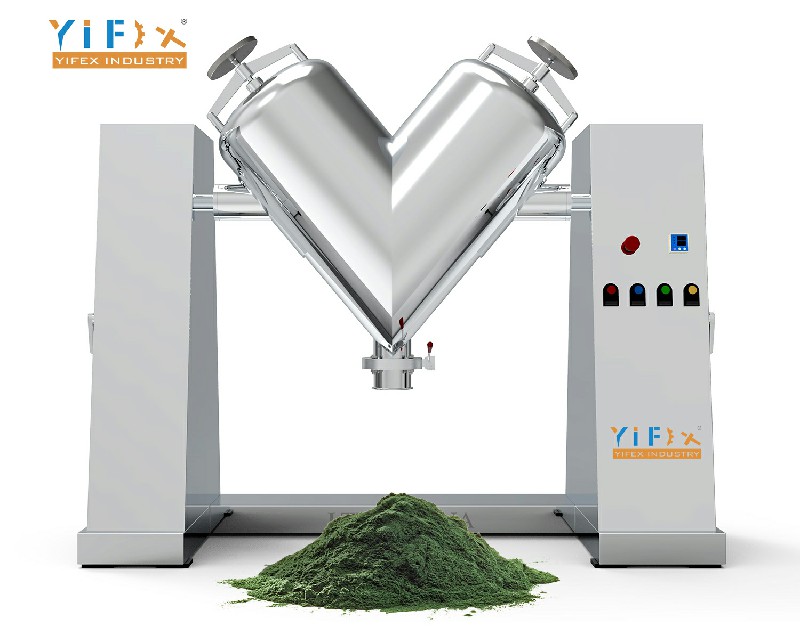

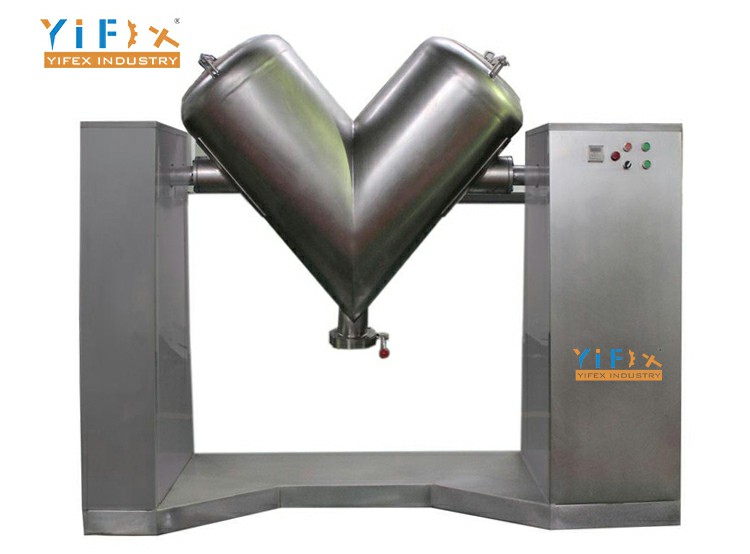

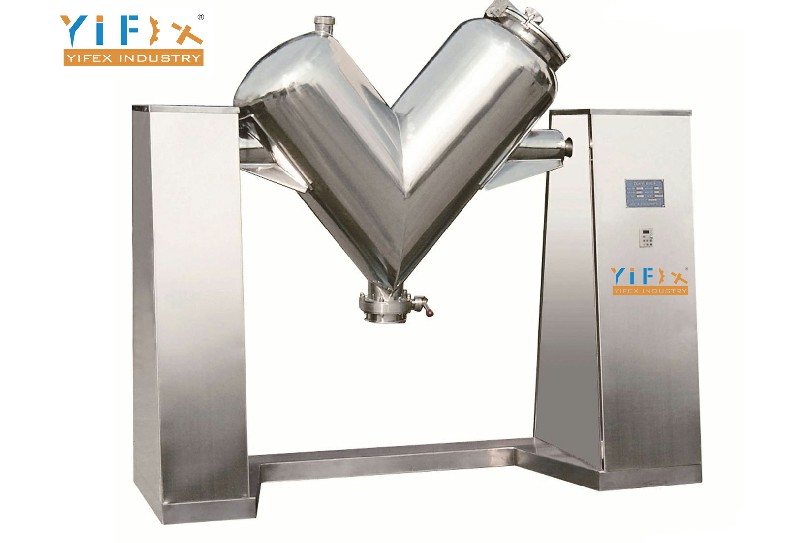

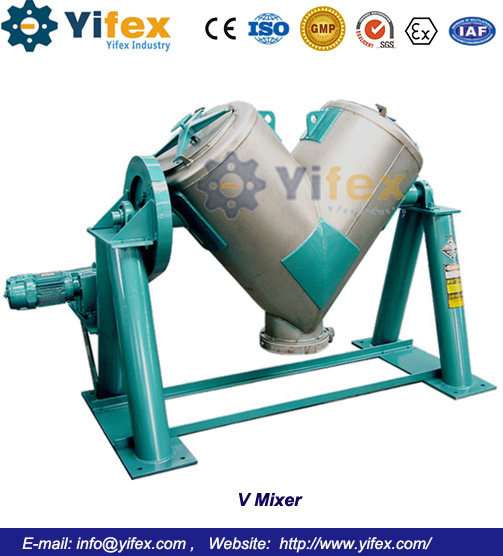

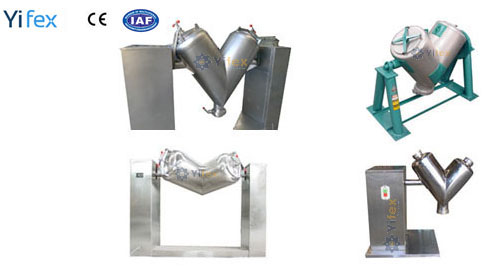

V Mixer
Model	SVP
Material	Stainless Steel 304 or 316，or Carbon Steel
Voltage	3 phase, 220V/ 380V/ 415V, 50HZ/60HZ(Customized is available)
Minimum Order Quantity	1 set
Warranty	12 months
Certification	CE,ISO,FDA,GMP
Delivery Time	10-30 days after receiving deposit
Payment Terms	T/T, L/C, Western Union, Paypal

If you choose this product, please tell us the Model and  your country. We will help you to calculate the machine price and shipping cost , Our Email is: info@yifex.com

For more details, please get in touch with us right now!

Introduction:

The "V" Mixer is an efficient and versatile blending machine for mixing and lubrication process of dry powders homogeneously. Approximate two third of the volume of the Mixer is filled to ensure proper mixing. The "V" Mixer gives best result for powders due to suitable medium speed and "V" shape of container.

Working Principle:

In "V" Mixer, the powders come from all sides due to the "V" shape of the product container. Suitable mainly for powder & granules type material. This type of material gets sufficient continuous movement. Due to the "V" shape of container, have only medium movement and will results in good quality of blending/lubrication of granules. • Suitable for dry mixing of products in powder form. • The "V" shape gives sufficient continuous movement to the granules, result in good quality. • Maximum care has been taken to ensure safe operation of the unit. • Manual rotating facility with hand wheel for inching • Particle size reduction is minimized due to the absence of any moving blades. The shape of blender body results in a near complete discharge of product material, clearly an added advantage over horizontal blender • The V Mixer is good for blending dry powders and granulated products.

Standard Features:

Volume: 100-6000L
Stainless Steel
No agitator inside Mixer
Designed for normal temperature and normal atmospheric pressure
Feed Nozzle
Manually operated butterfly valve
Packing Seal

Optional Features:

Stainless Steel 304, Stainless Steel 316L
Sanitary type construction
Butterfly valve, Slide gate valve
Horsepower to suit higher density materials
Explosion-proof motors
Controls such as variable frequency drives, motor starters and operator stations are available
Internal attachments like lump breakers and liquid dispensers widen the applications of this mixer
Technical Data:

Model	Total Volume	Effective Volume(MAX)	Power
SVP-0.05	50L	20L	0.75KW
SVP-0.1	100L	40L	1.1KW
SVP-0.2	200L	80L	1.1KW
SVP-0.3	300L	120L	1.1KW
SVP-0.5	500L	200L	2.2KW
SVP-1	1000L	400L	4KW
SVP-1.5	1500L	680L	5.5KW
SVP-2.5	2500L	1200L	11KW
SVP-4	4000L	1800L	15KW
SVP-6	6000L	2500L	18.5KW

Certification:

CE,ISO,FDA,GMP
